Reinforced concrete walls and fins stiffen and shade the National Bank of Kuwait skyscraper

The 63-story tower was designed by Foster + Partners and Buro Happold.

By John Caulfield, Senior Editor | April 19, 2023

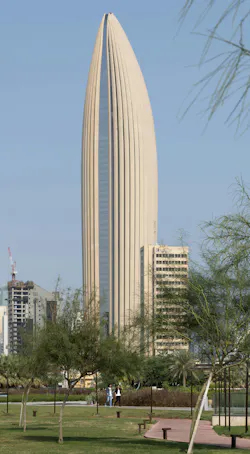

Reinforced concrete fins provide shade to the 300-meter-tall National Bank of Kuwait headquarters. Photo: Nigel Young/Foster + Partners

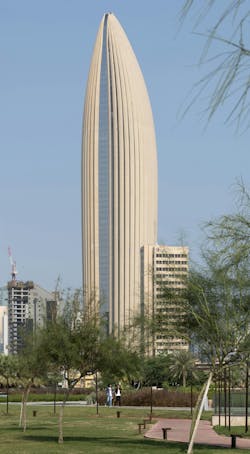

Reinforced concrete fins provide shade to the 300-meter-tall National Bank of Kuwait headquarters, which opens up on its north side to provide a full-grazed view of the Arabian Gulf and the city. Photo: Nigel Young/Foster + Partners

When the National Bank of Kuwait first conceived its new headquarters more than a decade ago, it wanted to make a statement about passive design with a soaring tower that could withstand the extreme heat of Kuwait City, the country’s desert capital.

Details about and images of this 300-meter-high, 127,000-sm headquarters, whose construction was completed in August 2020 within Kuwait City’s Sharq financial district, were made public last summer. The challenges for its Building team—which included the architect Foster + Partners, the engineering firm Buro Happold, and general contractor SSH—were to actualize an ambitious concept that called for a full-glazed view of the city and Persian Gulf from the tower’s north façade, while providing the building with sufficient lateral stability and shading from the blazing sun.

The resulting 63-story tower resembles a “squashed kidney bean,” quips Daniel Knott, Buro Happold’s Associate Director of Sustainability and Physics in London, who was involved in this project practically from the start.

Fortifying the structural core of the National Bank of Kuwait tower

Knott spoke with BD+C about this project in early February. He explained that its convex architectural form, on the tower’s north side, made it necessary to position its extruded structural core on the south side. But by doing so, the structural core, as initially drawn up, would not have provided the building with the lateral stiffness it needed.

The building team’s solution was to combine reinforced concrete core walls that extend throughout the height of the tower with steel outrigger trusses located at the building’s four service levels.

That solution also called for the installation of reinforced concrete structural fin columns that shade the building’s glass façade, reducing peak solar gain by 20% and annual solar gain by 25%, according to George Kerilis, a Project Principal with Buro Happold and the structural lead on the bank tower project.

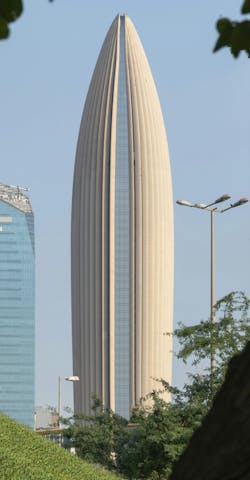

Photo: Nigel Young/Foster + Partners

In an email to BD+C, Kerilis explained that the fins were attached to the building by cantilever stubs that extend from each column at every glazing level. Knott said that, at one point, the bank wanted the fins pointing south, but the project team convinced its client that pointing them north would help the project meet its budgetary criteria and achieve LEED Gold certification. (Knott also recalled that the design once called for horizontal fins; making them vertical was an aesthetic choice.)

Knott acknowledged other shading methods that have been tried on different buildings. But the large fins “set a precedent.”

A number of firsts for this skyscraper

Through what Knott said was “constant analysis” of the building’s design, which included parametric modeling of the exterior, the building team realized that there would be times during the day when sunlight avoids the fins. That’s where the building’s shape, glazing, and fritted glass come into play to help control the tower’s energy consumption. “This was an interesting technical challenge” with frit performance and heat absorption, said Knott.

By tapering the building toward its base, the design maximizes floor space on the upper levels, and promotes self shading because the overhanging floor plates shelter the floors below. The tapering required each floor to be modeled individually, according to Buro Happold.

The National Bank of Kuwait headquarters, which according to SSH cost $433.2 million to build, achieved other firsts for this market, according to the building team and reporting by New Building Materials & Construction World Infra Construction and Equipment Magazine. The tower is serviced by a twin elevator system, with a set of elevator cabins operating independently in each of the 10 reinforced concrete shafts. The tower also has the world’s largest building maintenance unit, taking up two floors and located about 250 meters above sea level. The building’s chillers were adapted to handle peak energy loads, says Knott.

Crowning the tower is a striking, extreme-curved stick system glazing consisting of 199 glass panels.

Foster + Partners, which also provided the interior design, singles out among the tower’s flourishes its 18-meter-high lobby at the base of the building, along with “sky lobbies” at different levels. There’s a double-height restaurant at level 18, a state-of-the-art gym on level 19, and a ballroom and 140-seat auditorium on level 38.

The tower is replete with bespoke furniture and lighting, most notably in its triple-height boardroom on the 48th level that is distinguished by blown-glass pendants and a 13-meter-long board table.

Photo: Nigel Young/Foster + Partners
Photo: Nigel Young/Foster + Partners
Photo: Nigel Young/Foster + Partners
Photo: Nigel Young/Foster + Partners
Illustration: Foster + Partners
The tower is “crowned” with an extreme-curved stick system with 199 glass panels. Illustration: Foster + Partners
13-meter board table, Nigel Young:Foster + Partners
Everything about this tower is king-sized, including the 13-meter-long table in its boardroom.Everything about this tower is king-sized, including the 13-meter-long table in its boardroom. Photo: Nigel Young/Foster + Partners
