Calibration is your friend

With introductions out of the way and to kick off our first official blog post, I thought I’d start off with a cautionary tale of what didn’t work for one AEC firm… ‘cause we can only go up from here, right?
Jan. 29, 2013
2 min read
66fb165a6913962f3a4b9f1a Photo2011

With introductions out of the way and to kick off our first official blog post, I thought I’d start off with a cautionary tale of what didn’t work for one AEC firm…  ‘cause we can only go up from here, right?

Not long ago, I received a call from a Senior Design Manager of a large Construction firm.  When I picked up the phone and heard the dread in his voice, I knew it wasn’t going to be good.  He started off the conversation by telling me they had just learned a very valuable, yet expensive lesson.  His reason for calling me was so that I could pass this lesson along to others.  He then went on to describe a story of expensive miscalculation due to what he called, “user error”.  Now “user error” is a term I’m quite familiar with as it’s something my IT guy often refers to when I ask him to fix my computer.  This is typically then followed up with the statement that “the problem most likely exists between the keyboard and the computer,” which I’ve learned, is me.  But I digress.

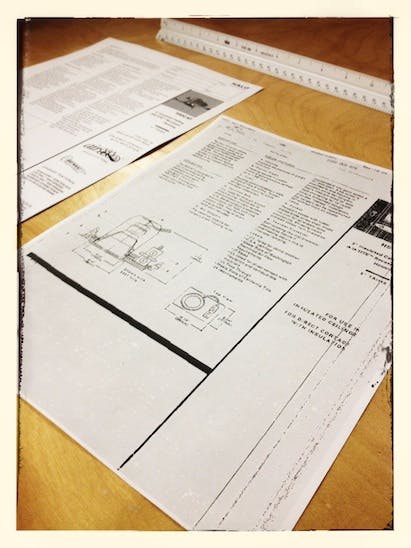

So the story goes that this construction firm sent out a set of PDF drawings to their specialty contractors for bidding.  It just so happened that one of the drawings came back as a scanned PDF.  Not a big deal, they often receive back scanned drawings.  So they went through their usual process of marking up the PDF which included some takeoffs and measurements. Since they had invested in electronic markup tools they calibrated the PDF, to ensure all of the markups were to scale.  However in this instance, they were unaware that there had been a glitch during the scanning process which distorted a section of the drawing.  Having calibrated the drawing in only one spot, they didn’t catch this distortion. A few months later when their materials arrived onsite, they discovered their “user error” cost them nearly $100K in extra inventory!

So what is the lesson learned here?  Regardless if your drawing is a scan or a PDF converted from CAD, it’s always best to calibrate in at least three different spots.  This way, you are more likely to discover any glitches on the PDF drawing or mistakes in the notated scale.   Not to mention, saving yourself from telling your own “user error” story one day.
