Chilled beam for hospitals, office buildings, and schools

May 20, 2013
2 min read

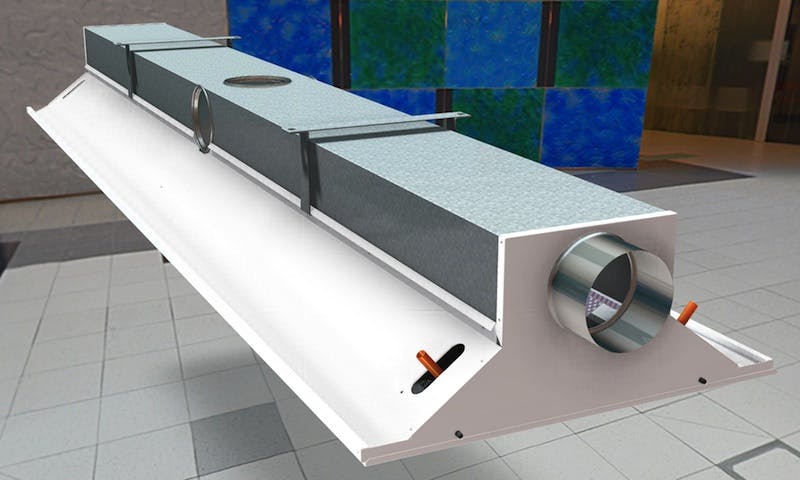

SEMCO LLC introduces the IQHC (high capacity) Series of active chilled beams that provide high efficiency cooling/heating and are specifically designed for hospitals, office buildings, and schools.

The IQHC offers one of the industry's highest capacities, but features up to a 25-percent and 50-percent reduction in pump and fan horsepower, respectively, versus conventional chilled water loop or rooftop forced air HVAC system methods.

The quick-installing IQHC eliminates hours of site coordination time because of five universal six-inch-diameter duct knockouts with spin-fit collars located in the top or any of the four sides and universal water piping connection locations. Each beam easily snaps into two included mounting brackets. Competing brands use factory-set airflow nozzles that require replacement or complicated pressure balance calibrations for cfm rate changes, whereas SEMCO's design features a proprietary 12-slot nozzle that's field-adjustable with two easily-accessed hand-operated levers. The integral flow pattern control can also be angled as much as 45-degrees to address room hotspots.

The nozzle adjustment additionally provides a unilateral, disproportional or equal air volume from each side. The beams can be installed in a ceiling grid or as a pendant, the latter which highlights the IQHC's aesthetic 22-ga. construction and powder-coated finish.

The two-foot-wide IQHC is available as two-pipe or four-pipe models each in four sizes spanning four (3,800-Btu/h), six (5,000-Btu/h), eight (7,420-Btu/h) and 10-foot-long (9,700- Btu/h) models nominally-rated at 1/2-gpm and 0.5-inch w.g. The variety of sizes offers architects complete flexibility for any type of space size or ceiling heights up to 14 and 18-feet-high when utilized for heating and cooling only, respectively.

The IQHC is designed to operate with any dedicated outdoor air system (DOAS), such as SEMCO's Pinnacle Series, which uses exhaust heat recovery and molecular sieve enthalpy wheel technologies to efficiently deliver drier air at higher temperatures, thus eliminating the potential of condensation that's associated with some competing chilled beam brands.

For more information, visit: http://www.semcohvac.com.
