HDR uses artificial intelligence tools to help design a vital health clinic in India

Architects from HDR worked pro bono with iKure, a technology-centric healthcare provider, to build a healthcare clinic in rural India.

By John Caulfield, Senior Editor | April 19, 2023
HDR uses artificial intelligence tools to help design iKure health clinic in India
HDR uses artificial intelligence tools to help design iKure health clinic in India

Paul Howard Harrison has had a longstanding fascination with machine learning and performance optimization. Over the past five years, artificial intelligence (AI) has been augmenting some of the design work done by HDR, where Harrison is a computational design lead. He also lectures on AI and machine learning at the University of Toronto in Canada, where he earned his Masters of Architecture.

Harrison’s interest in computational research and data-driven design contributed to the development of an 8,500-sf healthcare clinic and courtyard at Baruipur, in West Bengal, India. This was Harrison’s first project with Design 4 Others (D4O), a philanthropic initiative that operates out of HDR’s architecture practice through which architects volunteer their services to make positive impacts on underserved communities.

India has fewer than one doctor per 1,000 people. (By comparison, the ratio in the U.S. is more than 2.5 per 1,000.) The client for the Baruipur clinic is iKure, a technology and social enterprise that delivers healthcare through a hub-and-spoke model, where clinics (hubs) extend their reach to where patients live through local healthcare workers (the spokes), who are trained to monitor, track, and collect data from patients. The hubs and spokes are connected by a proprietary platform called the Wireless Health Incident Monitoring System. According to iKure’s website, there are 20 hubs of varying sizes serving nine million people in 10 Indian states. iKure’s goal is to eventually operate 125 hubs and expand its concept to 10 Asian and African countries.

D4O and iKure became aware of each other in 2019 through Construction for Change, a Seattle-based nonprofit construction management firm. Prior to the Baruipur hub project, D4O and Construction for Change had worked on more than a dozen projects together, starting with a healthcare clinic in northwest Uganda, according to the August 11, 2020, episode of HDR’s podcast “Speaking of Design.”

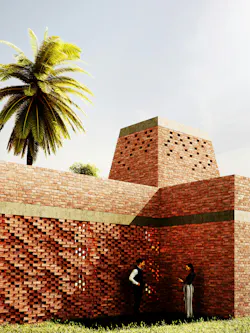

HDR uses artificial intelligence tools to help design iKure health clinic in India. Rendering courtesy Design 4 Others
HDR trained AI on a data set for different screening designs that could be made of brick, a local specialty. Rendering courtesy Design 4 Others

AI as an ideation tool for design optimization

Harrison—whom BD+C interviewed with Megan Gallagher, a health planner at HDR and a D4O volunteer on the Baruipur project—acknowledges that all design outputs come with inherent biases. But by training AI on smaller models, the datasets and biases can be controlled, he posits.

Initially, HDR found AI useful for design optimization; more recently, the firm has been using AI for early-stage ideation. Harrison points specifically to the design for a hospital in Kingston, Ontario, where HDR used AI as an ideation tool. “AI is better at coming up with what I like than I am,” he laughs.

The firm has also used AI as a means of engagement to get different client constituencies on the same page about a project’s mission.

During the interview, Harrison several times referred to DALL-E, an open AI system used to create realistic images. DALL-E favors a diffusion model, a random-field approach to produce generative models that are similar to data on which the AI has been trained.

Where most project designs start with a facility’s programming, the iKure clinic was different in that it needed to support the hub-and-spoke delivery method. The client also wanted a design that could add a second floor, as needed.

To help design the iKure hub, Harrison wrote a machine-learning program that focused on the building’s gross floor area, the amount of shade the building would provide (as some patients need relief after traveling long distances to receive care), and the size of the building’s modules. (Gallagher notes that each room is 125 sf.)

Aerial rendering created by DALL-E of the campus
Aerial rendering created by DALL-E of the campus. Rendering courtesy Design 4 Others

By optimizing for shade, the algorithm consistently came up with a courtyard design. “The end result looked similar to a courtyard house in Kolkata,” observes Gallagher. The computer program also came up with the best positioning for circulation aisles within a building that would not be air conditioned.

Treatment rooms were moved to the back of the building, which has four strategically located shading areas. Air is circulated up and out of the building through chimneys whose design takes its cue from local brick kilns.

The last piece of the hub’s design will be its screening for security and ventilation. Harrison says that HDR has been training AI on a dataset of different screen designs that could be made from brick. (This area of India is known for its brickmaking, he explains.)

HDR is focusing on the doable with artificial intelligence tools

Gallagher says she’s curious to see how AI will progress as a design tool. Harrison concedes that while AI is quicker for ideation, it will take some time to perfect the tool for larger projects.

As for the iKure hub, Harrison observed in HDR’s 2020 podcast that “you don’t need to have a high-architecture project to have a high-tech approach.”

When it’s completed, the Baruipur clinic will offer eye and dental care, X-rays, maternal and pediatric care, and telemedicine. The hub will serve about a half-dozen spokes as well as multiple villages that include remote islands in the Sundarbans Delta, where diagnostics will be accessible through portable handheld devices, says Jason-Emery Groën, Vice President and Design Director for HDR’s Kingston office.

Groën says that HDR focuses on projects that are most likely to have a significant impact on their communities, and have the best chance of getting built. And D4O has been in discussions with iKure about helping with its expansion plans.

But he’s also realistic about the unpredictability of project delays in underdeveloped markets. The iKure hub was scheduled for completion in 2021, but might not be ready until 2024. Groën explains the construction has taken longer than anticipated because the client wanted D4O to review land options before it settled on the original site, the pandemic’s impact on labor and materials availability, and longer-than expected monsoon seasons.
